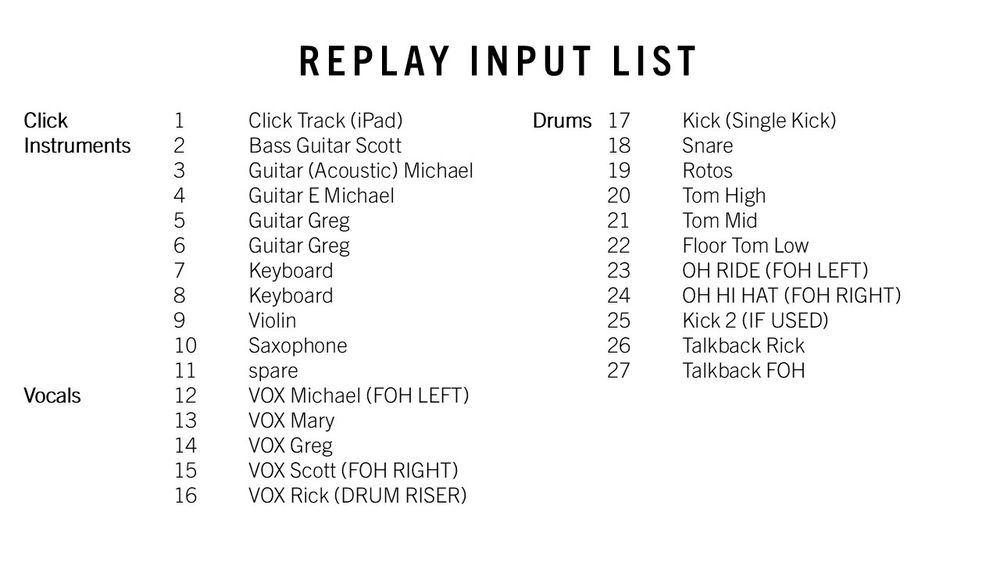

Replay Input List
| FOH Orientation | |||||||||||||||
| Artist | Michael | Mary | Rick | Greg | Scott | REPLAY |
contact@Replay.Rocks 847 989-3333 |
||||||||
| Group | Replay X32 Inputs | Instrument | Drop Snake Name | Snake Channel # | X32 Rack # | S32 # | Mic/Line | Type | Stand/Mount | Stage Right/Left ( FOH Orientation) | Artist |
Phantom ? |
DCA ? | In Ear Monitor Mix |
Effects Gate, Compr, Reverb, Delay |
| Click | 1 | Click Track (iPad) | Drum 12X4 | 10 | 1 | 1 | Line | USB C to TRS 1/4" from iPad to DI Box using mono balanced TRS cable | iPad on cymbal stand | USC | Rick | DCA 6 | R, G | ||
Instruments |
2 | Bass Guitar Scott | Frntline Harness | 2 | 2 | 2 | Line | XLR LINE OUT | DSL | Scott | DCA 3 | All | |||
| 3 | Guitar (Acoustic) Michael | Frntline Harness | 3 | 3 | 3 | Line + DI Box | XLR LINE OUT | DSR | Michael | DCA 3 | All | ||||
| 4 | Guitar E Michael | Frntline Harness | 4 | 4 | 4 | Line | XLR LINE OUT | DSR | Michael | DCA 3 | All | ||||
| 5 | Guitar Greg | Frntline Harness | 5 | 5 | 5 | Line | XLR LINE OUT | DSL | Greg | DCA 3 | All | ||||
| 6 | Guitar Greg | Frntline Harness | 6 | 6 | 6 | Line | XLR LINE OUT | DSL | Greg | DCA 3 | All | ||||
| 7 | Keyboard | Keys Harness | 7 | 7 | 7 | Line | 1/4"TRS Male to XLR Male | DSR | DCA 3 | All | |||||
| 8 | Keyboard | Keys Harness | 8 | 8 | 8 | Line | 1/4"TRS Male to XLR Male | DSR | DCA 3 | All | |||||
| 9 | Violin | Frntline Harness | 9 | 9 | 9 | Line + DI Box | XLR LINE OUT | DSC | Mary | DCA 3 | All | ||||
| 10 | Saxophone | Frntline Harness | 10 | 10 | 10 | Shure SM58 | XLR LINE OUT | Boom Mic Stand | DSC | Mary | DCS 3 | All | |||
| 11 | 11 | 11 | 11 | ||||||||||||
Vocals |
12 | VOX Michael | IN RACK | 12 | 12 | 12 | Shure SLDX Wireless 58 | Wireless | Boom Mic Stand | DSR | Michael | DCA 2 | All | G,C,R | |
| 13 | VOX Mary | INRACK | 13 | 13 | 13 | Shure SLDX Wireless 58 | Wireless | Boom Mic Stand | DSC | Mary | DCA 2 | All | G,C,R | ||
| 14 | VOX Greg | IN RACK | 14 | 14 | 14 | Shure SLDX Wireless 58 | Wireless | Boom Mic Stand | DSL | Greg | DCA 2 | All | G,C,R | ||
| 15 | VOX Scott | Frntline Harness | 15 | 15 | 15 | Sennheiser | XLR LINE OUT | Boom Mic Stand | DSL | Scott | DCA 2 | All | G,C,R | ||
| 16 | VOX Rick | Drum 12X4 | 11 | 16 | 16 | Shure SM58 switched | XLR LINE OUT | Boom Mic Stand | USC | Rick | DCA 2 | All | G,C,R | ||
Drums |
17 | Kick (Single Kick) | Drum 12X4 | 1 | 17 | Shure Beta 52A | XLR LINE OUT | GFW-Mic-0821 | USC | Rick | DCA 1 | R | G,C | ||
| 18 | Snare | Drum 12X4 | 2 | 18 | Shure SM57 | XLR LINE OUT | Shure A56D Rim Mount | USC | Rick | DCA 1 | R | G,C,R,D | |||
| 19 | Rototoms | Drum 12X4 | 3 | 19 | Shure SM57 | XLR LINE OUT | Boom Mic Stand | USC | Rick | DCA 1 | R | ||||
| 20 | Tom High | Drum 12X4 | 4 | 20 | Shure SM57 | XLR LINE OUT | Shure A56D Rim Mount | USC | Rick | DCA 1 | R | G,C | |||
| 21 | Tom Mid | Drum 12X4 | 5 | 21 | Shure SM57 | XLR LINE OUT | Shure A56D Rim Mount | USC | Rick | DCA 1 | R | G,C | |||
| 22 | Floor Tom Low | Drum 12X4 | 6 | 22 | Shure SM57 | XLR LINE OUT | Shure A56D Rim Mount | USC | Rick | DCA 1 | R | G,C | |||
| 23 | OH RIDE | Drum 12X4 | 7 | 23 | AKG P170 | XLR LINE OUT | Boom Mic Stand | USR | Rick | Yes | DCA 1 | R | G,C | ||
| 24 | OH HI HAT | Drum 12X4 | 8 | 24 | AKG P170 | XLR LINE OUT | Boom Mic Stand | USL | Rick | Yes | DCA 1 | R | G,C | ||
| 25 | Kick 2 | Drum 12X4 | 9 | 25 | Shure Beta 52A | XLR LINE OUT | GFW-Mic-0821 | USC | Rick | DCA 1 | R | G,C | |||
| 26 | Talkback Rick | Drum 12X4 | 12 | 26 | All | ||||||||||
| 27 | 27 | ||||||||||||||
| 28 | 28 | ||||||||||||||
| 29 | Voice - Crowd | 29 | SM57 | XLR LINE OUT | Desk stand at X32 | All | |||||||||
| 30 | EQ Room | 30 | Condenser mic | XLR LINE OUT | Crowd | Yes | |||||||||
| 31 | Main L (For recording) | 31 | |||||||||||||
| 32 | Main R (For recording) | 32 | |||||||||||||
| X32 Output | Purpose | Device | Pan | ||||||||||||
| Out 1 | IEM L Mary | 1 | Shure PSM300 | Mary | |||||||||||
| Out 2 | IEM R Mary | 2 | Mary | ||||||||||||
| Out 3 | IEM L Michael | 3 | Shure PSM300 | Michael | |||||||||||
| Out 4 | IEM R Michael | 4 | Michael | ||||||||||||
| Out 5 | IEM L Greg | 5 | SHURE PSM300 |
Left | Greg | ||||||||||
| Out 6 | IEM R Greg | 6 | Right | Greg | |||||||||||
| Out 7 | IEM L Rick | Drum 12X4 | A | 7 | Line with P1 amp | P1 on mic stand | Rick | ||||||||
| Out 8 | IEM R Rick | Drum 12X4 | B | 8 | Rick | ||||||||||
| Out 9 | IEM Mono Scott | 9 | XVIVE U4 | Scott | |||||||||||
| Out 10 | |||||||||||||||
| Out 11 | |||||||||||||||
| Out 12 | Venue Mono Feed | ||||||||||||||
| Out 13 | Front Fill (Future) | ||||||||||||||
| Out 14 | FOH SUBS MONO | 6 | Center or R L | ||||||||||||
| Out 15 | FOH PA | 7 | Left (FOH) | ||||||||||||
| Out 16 | FOH PA | 8 | Right (FOH) | ||||||||||||
| Purpose | Note | Alternative | |||||||||||||
| Aux 5 | iPhone playback L | iPhone or similar | 1/8" pin jack to RCA Stereo cable or USB-C to RCA Stereo cable | ||||||||||||
| Aux 6 | iPhone playback R | ||||||||||||||
